FIFISH E-GO

FIFISH E-GO

Operate & explore without boundaries

Copy of Untitled Design (1)

See Beyond Limits with Ultra-wide Vision
Equipped with a 176° ultra-wide-angle reconnaissance camera, FIFISH E-GO sets the standard as the only ROV in its class with a 146° fisheye field of view. This, coupled with with 4 LED light sources and an industry-leading brightness of 10,000 lumens, will ensure your next expedition is lead with clarity and confidence.

10cm Underwater Macro Capture
The E-GO has a macro focus range of 10cm, allowing for close observation of targets and capturing clear details underwater – even in turbulent environments.

FIFISH E-GO
Achieve Seamless Operations with the new dual battery system, designed to aid Instant Power Replacement in seconds.

FIFISH E-GO boasts a dual battery system, with each battery having a 69.12Wh capacity. This upgraded quick-disassembly structure incorporates pressure-resistant, waterproof, and corrosion-resistant connectors, ensuring fast and secure battery replacement. The E-GO’s batteries can operate for up to 2.5hrs and can be replaced without shutting the machine down. It also supports a quick charging mode and can be charged by 90% in one hour.

Upgraded Motor & Propeller System
FIFISH E-GO is equipped with hard-anodised aluminium alloy propeller blades that assist in damage resistance, corrosion resistance, and anticrystallisation.  These blades also boost underwater speed by 30% and enhance overall energy efficiency by 50%.

AI Vision Capabilities
FIFISH E-GO’s AI Vision Station Lock enables effortless one-click target lock of underwater objects. With automatic hovering and current resistance, it provides reliable stability and support for underwater operations.

Removable SD Card
The ROV is equipped with a built-in Micro SD card slot, allowing for quick transfer of films and images. Quickly store and transfer data on the supplied 128mb SD card, or expand to a maximum 256mb SD card.

FIFISH E-GO SPECIFICATIONS

ROV

Dimensions:           430mm x 345mm x 170mm
Weight:                    5.1kg
Propellers:              6 (FIFISH Closed Wing Motors)
Manoeuvrability:    6 Degrees of Freedom
                                 Movement: left & right, up & down, forward & backward
                                 Rotation: 360° pitches, 360° rolls, 360° yaws
Posture LockTM:     Lock the ± 0.1° pitch or roll angle, in any direction
Hovering:                Keep the ROV suspending in ± 1cm
Speed:                     Maximum 3 knots
Depth Rating:         100m (328ft)
Temperature Range: -10°C to 50°C
Max Dive Time:       Up to 2.5 hours (depending on usage scenario)
Battery:                   Rated Capacity: 69.12Wh x2
                                 Charge Voltage: 18V10A, 90% 1hr quick charge                                  No. of batteries:      2
                                 Swappable battery with smart management & detection

LIGHTS

Brightness:             5,000 Lumen LED x2
CCT:                         5500 K (Correlated Colour Temperature)
Beam Angle:           160°
Levels:                    3 x Brightness Modes

Robotic Arm & Parallel Gripper (optional)

Grip:                        510kgf
Size:                        140mm
Supply Voltage:      9-12V
Maximum Current: 3A
Grasping DIA:        12cm

TETHER & SPOOL

Length:                   200m standard
Breaking Force:     130kgf
Tether DIA:              4mm
Waterproof Rating: IP67
Underwater Weight: Neutral Buoyancy

MOTOR

Motor Type:            Bionic ring
Number of Wings: 6 Propellers
Blade Material:       Hard anodized aluminium alloy

Product specifications & accessories are subject to change without notice

CAMERA

Sensor:                1/1.8”
Pixels:                  8MP
ISO Range:           100 – 6400 in Auto/Manual
Lens:                     Field of View: 120° x 70° x 146°
                               Aperture: f/2.5
                               Minimum Focus Distance: 0.1m
Shutter Speed:     5 -1/5000 Second
Burst Shooting:    1 / 3 / 5 / 7 Frames
White Balance:     2,500K – 8,000K ; Auto / Manual
Exposure Comp.: -3.0EV to +3.0EV / Auto
Photo Resolution: 3840 x 2160
Photo Format:       JPEG, DNG
Video Res:             4K UHD: 25 / 30 fps (H.264/265)
                                1080P FHD: 25/30/50/60/100/120 fps
                                720P HD: 25/30/50/60/75/90/100/120/                                                      150/180 fps
Video Format:        MPEG4 – AVC/H.264, HEVC/H.265
Stabilisation:          EIS (Electronic Image Stabilisation)
Colour Encoding:  NTSC & PAL
Storage:                 Pluggable 128GB standard, support                                                     up to 256GB
Camera Function: AI Vision Static Lock & AI Plankton                                                      Filter

CONTROLLER

Wireless:                5GHz WiFi,11a,n, ac
Battery Life:           4 hours +
SD Card Support:  Micro SD Card FAT32 & EXFAT Format
                                (to 256GB)
HDMI Output:         QYSEA HDMI BOX required for                                                              connection

CHARGER

ROV:                       Input: 100-240V, 50/60Hz, 2.5A                                                             Output: 18V=10A
RC:                         Input: 100-240V, 50/60Hz, 0.5A                                                               Output: 5V=3A, DC

PORT IN

Quantity:                 2 Port (expandable to 6)
Interface (upper):   11V-24V@5A ETHERNET, UART
Interface (lower):    12V@5A ETHERNET, UART                    Adjustable Power:  Adaptive Voltage range for external                                                     accessories
Secure Plug:           Diagnostic tests & leakage prevention

FIFISH E-GO SPECIFICATIONS

ROV

Dimensions:              430mm x 345mm x 170mm
Weight:                       5.1kg
Propellers:                 6 (FIFISH Closed Wing Motors)                    Speed:                        3 knots
Manoeuvrability:       6 Degrees of Freedom
                                    Movement: left & right, up & down, forward                                      & backward                                                        Rotation:                    360° pitches, 360° rolls, 360° yaws
Posture LockTM:        Lock the ± 0.1° pitch or roll angle, in any                                          direction
Hovering:                   Keep the ROV suspending in ± 1cm
Depth Rating:            100m (328ft)
Temperature Range: -10°C to 50°C
Max Dive Time:          Up to 2.5 hours (depending on usage                                                scenario)
Battery:                      Rated Capacity: 72Wh x2
                                    Charge Voltage: 18V10A, 90% 1hr quick                                            charge                                                                                                    Number of batteries: 2
                                    Swappable battery with smart management                                      & detection

LIGHTS

Brightness:                5,000 Lumen LED x2
CCT:                            5500 K (Correlated Colour Temperature)
Beam Angle:              160°                                                                    Light settings:            x3 brightness modes

ROBOTIC ARM & PARALLEL GRIPPER (optional)

Grip:                            10kgf                                                                  Size:                            140mm                                                              Supply Voltage:          9 – 12V
Maximum Current:     3A                                                                  Grasping DIA:            12cm

TETHER & SPOOL

Length:                        200m standard
Breaking Force:          130 kgf
Tether DIA:                  4 mm                                                                Underwater weight:    Neutral buoyancy                                      Waterproof rating:      IP67

MOTOR

Motor type:                  Bionic ring
Number of wings:       6 Propeller
Blade material:            Hard anodized aluminium alloy

CAMERA

Sensor:                  1/1.8″
Pixels:                    8MP
ISO Range:            100 – 6400 in Auto/Manual
Lens:                      Field of View: 120°x70°146°
                                Aperture: f/2.5
                                Minimum Focus Distance: 0.1m
Shutter Speed:      5 -1/5000 Second
Burst Shooting:     1 / 3 / 5 / 7 Frames
White Balance:      2500K – 8000K
Exposure Comp.:  -3.0EV to +3.0EV / Auto
Photo Resolution: 3840 x 2160
Photo Format:       JPEG, DNG
Video Res:             4K UHD: 25/30 fps (H.264/265)
                                1080P FHD: 25/30/50/60/100/120 fps
                                720P HD: 50/60/75/90/100/120/150/180                                      fps
Video Format:        MPEG4 – AVC/H.264, HEVC/H.265
Stabilisation:         EIS (Electronic Image Stabilisation)
Colour Encoding:  NTSC & PAL
Storage:                  Pluggable 128GB  standard, support                                      up to 256GB                                        Camera Function:  AI Vision Static Lock & AI Plankton                                         filter

CONTROLLER

Wireless:                 5GHz WiFi,11a,n, ac
Battery Life:            4 hours +
SD Card Support:   Micro SD Card FAT32 & EXFAT                                                 Format (to 256GB)                             HDMI Output:         QYSEA HDMI BOX required for                                                 connection

CHARGER

ROV:                         Input: 100-240V, 50/60Hz, 2.5A Max
                                  Output: 18V=10A
RC:                            Input 100-240V, 50/60Hz, 0.5A Max
                                  Output: 5V = 3A, DC

PORT IN

Quantity:                   2 ports (expandable to 6)                        Interface (upper):     11v – 24v@5A ETHERNET, UART        Interface (LOWER):  12v@5A ETHERNET, UART                Adjustable power:    Adaptive voltage range for external                                         accessories                                            Secure plug:             Diagnostic tests & leakage prevention



Product specifications & accessories are subject to change without notice

FIFISH E-GO

FIFISH E-GO

Operate & explore without boundaries

FIFISH E-GO can achieve Seamless Operations with the new dual battery system, designed to aid Instant Power Replacement in seconds.

FIFISH E-GO boasts a dual battery system, with each battery having a 69.12Wh capacity. This upgraded quick-disassembly structure incorporates pressure-resistant, waterproof, and corrosion-resistant connectors, ensuring fast and secure battery replacement. The E-GO’s batteries can operate for up to 2.5hrs and can be replaced without shutting the machine down.  It also supports a quick charging mode and can be charged by 90% in 1 hour.

Copy of Untitled Design (1)

See Beyond Limits With Ultra-wide Vision

Equipped with a 176° ultra-wide-angle reconnaissance camera, FIFISH E-GO sets the standard as the only ROV in its class with a 146° fisheye field of view. This ,Coupled with with four LED light sources and an industry-leading brightness of 10,000 lumens, will ensure your next expedition is lead with clarity and confidence.

10cm Underwater Macro Capture

The E-GO has a macro focus range of 10cm, allowing for close observation of targets and capturing clear details underwater – even in turbulent environments.

Upgraded Motor & Propeller System

FIFISH E-GO is equipped with hard-anodized aluminum alloy propeller blades that assist in damage resistance, corrosion resistance, and anticrystallization.  These blades also boost underwater speed by 30% and enhance overall energy efficiency by 50%.

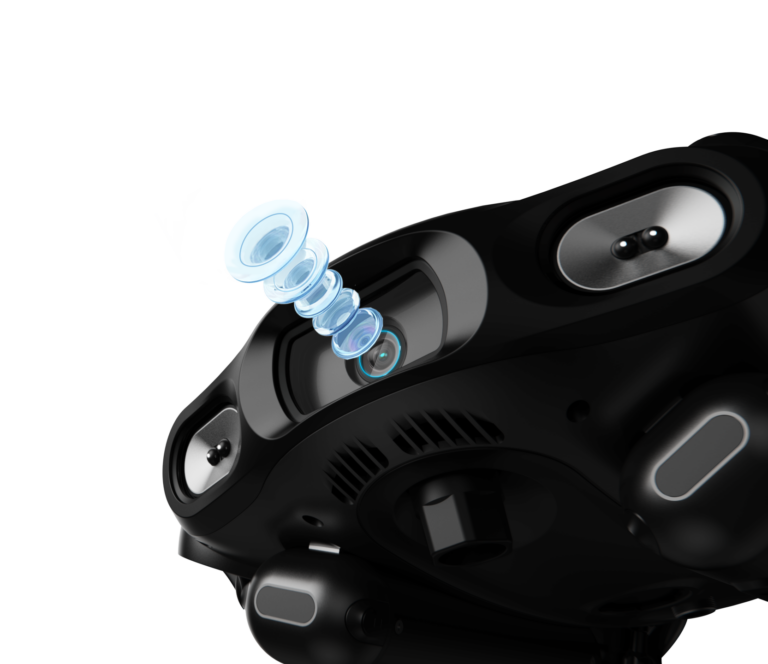

FIFISH E-GO4 (lens)

AI Vision Capabilities

FIFISH E-GO’s AI Vision Station Lock enables effortless one-click target lock of underwater objects. With automatic hovering and current resistance, it provides reliable stability and support for underwater operations.

Removable SD Card

The ROV is equipped with a built-in Micros SD card slot, allowing for quick transfer of films and images.  Quickly store and transfer data up to 256mb SD card.

FIFISH E-GO SPECIFICATIONS

ROV

Dimensions:              430mm x 345mm x 170mm
Weight:                       5.1kg
Propellers:                 6 (FIFISH Closed Wing Motors)      Speed:                        3 knots
Manoeuvrability:       6 Degrees of Freedom    Movement:                 left & right, up & down, forward                                        & backward                          Rotation:                    360° pitches, 360° rolls, 360°                                              yaws
Posture LockTM:        Lock the ± 0.1° pitch or roll                                                angle, in any direction
Hovering:                   Keep the ROV suspending in                                            ± 1cm
Depth Rating:            100m (328ft)
Temperature Range: -10°C to 50°C
Max Dive Time:          Up to 2.5 hours (depending on                                          usage scenario)
Battery:                       Rated Capacity: 69.12Wh x2
                                    Charge Voltage: 18V10A, 90%                                            1hr quick charge                              Number of batteries: 2
                                    Swappable battery with smart                                            management & detection

LIGHTS

Brightness:                5,000 Lumen LED x2
CCT:                            5500 K (Correlated Colour                                                  Temperature)
Beam Angle:              160°                                                  Light settings:            x3 brightness modes

ROBOTIC ARM & Parallel Gripper (optional)

Grip:                            10kgf                                            Size:                            140mm                                            Supply Voltage:          9 – 12V
Maximum Current:     3A                                                Grasping DIA:            12cm

TETHER & SPOOL

Length:                        200m standard
Breaking Force:          130 kgf
Tether DIA:                  4 mm                                            Underwater weight:    Neutral buoyancy                          Waterproof rating:      IP67

MOTOR

Motor type:                  Bionic ring
Number of wings:       6 Propeller
Blade material:            Hard anodized aluminium alloy

CAMERA

Sensor:                        1/1.8″
Pixels:                          8MP
ISO Range:                  100 – 6400 in Auto/Manual
Lens:                            Field of View: 120°x70°146°
                                      Aperture: f/2.5
                                      Minimum Focus Distance: 0.1m
Shutter Speed:            5 -1/5000 Second
Burst Shooting:           1 / 3 / 5 / 7 Frames
White Balance:            2500K – 8000K
Exposure Comp.:        -3.0EV to +3.0EV / Auto
Photo Resolution:       3840 x 2160
Photo Format:             JPEG, DNG
Video Res:                   4K UHD: 25/30 fps (H.264/265)
                                      1080P FHD: 25/30/50/60/100/120                                        fps
                                      720P HD:50/60/75/90/100/120/                                            150/180 fps
Video Format:              MPEG4 – AVC/H.264,                                                          HEVC/H.265
Stabilisation:                EIS (Electronic Image                                                        Stabilisation)
Colour Encoding:        NTSC & PAL
Storage:                        Pluggable 128GB  standard,                                               support up to 256GB                    Camera Function:        AI Vision Static Lock &  AI                                                 Plankton filter

CONTROLLER

Wireless:                       5GHz WiFi,11a,n, ac
Battery Life:                  4 hours +
SD Card Support:         Micro SD Card FAT32 & EXFAT                                         Format (to 256GB)                        HDMI Output:                QYSEA HDMI BOX required for                                         connection

CHARGER

ROV:                               Input: 100-240V, 50/60Hz, 2.5A
                                        Output: 18V=10A
RC:                                  Input 100-240V, 50/60Hz, 0.5A
                                        Output: 5V = 3A, DC

PORT IN

Quantity:                         2 ports (expandable to 6)          Interface (upper):           11v – 24v@5A ETHERNET,                                                 UART                                      Interface (LOWER):        12v@5A ETHERNET, UART    Adjustable power:          Adaptive voltage range for                                                 external accessories                Secure plug:                   Diagnostic tests & leakage                                                 prevention

Product specifications & accessories are subject to change without notice
